Rock Guard Rescue- PT 3

For those following our Rock Guard 3R’s (rescue, restore, reinstall) we are on the final step.  Installation of our beautiful, newly rehab’d rock guard we salvaged off of a 1983-84 crunched Avion we found by sheer luck not more than 1.5 hours from our house and in a campground bone yard in a tiny town in VT.

Here is the before….and after…..then…..”THE REST OF THE STORY” ( yes, dating myself)

Below (left) is soon to be salvaged rock guard off a ’83-84 found in VT, (right) is completely rehabbed and now rehung back onto our 1973 Avion.  Note the “bling factor” and read on to see how and what we did!

Obviously the first steps of this rehab was literally just elbow grease to take off years of grime.  You can see all the steps we did including photos and videos in our Phase 1 & 2 blog posts.  We chose a high gloss finished on the interior and exterior of the guard which was professionally painted and finished by a local auto body detailer, Mac the Knife on Quaker Road in Queensbury NY.  He loved the diversion this project gave him over the long Adirondack winter!

The final phase 3 of this big project has been to reinstall the guard.  But there were some issues.    The hanging track of our original (the part installed to nose of trailer) was smaller than the “new” rock guard.  In fact it was 7 inches longer.

We determined that this longer length was actually preferable as it would take more of the pressure off those areas that historically start to show stress cracks on countless Avion’s we have seen (yes believe this was a 45 yr old design flaw on part of original manufacturers).

This meant, we had to first remove our original hanging track.  A little scary since we had never worked with rivets, etc.  But as usual Kevin had watched 100’s of hours on “how to rivet” on YouTube, purchased a few books and then all necessary equipment from Vintage Trailer Supply.  He felt confident in what he had to do.

First step:  Drill out old rivets holding hanging track on our rig.  Old track drilled out and removed.  Clean up of area really well is very important. We use a “bone tool” we buy at the auto parts store to remove old grime, butyl tape, any sticky stuff.  This one works perfect, it has a flat scraper end and a rounded end.  It is actually a hard nylon plastic which will not scratch your aluminum but give you the ability to get stuff off…even smushed bugs too!   Kev is “all about the prep!”

Installed 3/4 inch Butyl tape strip on back edge of new track before installation.

Install replacement (longer) hanging track onto trailer front.  Use stainless steel rivets for install, use Parbond to cover over each rivet head to prevent any possible water penetration.  Parbond along seam that runs along top of guard hanger where attaches to trailer.  This is a critical step.  When riveting or screwing anything into the skin of your trailer, you create a possible way for water to eek in behind and roll down into the holes made by the rivets or screws.  Using Parbond, (we use silver/aluminum colored and and our handy dandy dental hygiene syringe applicator (Amazon, 8 for $10) to a make perfect thin line edges.

We tried reusing as many of the original holes we could from where the original guard track was hung.  Unused holes were pre-filled with Parbond completely sealing them.  Kevin snipped off the tines of the rivets and used the rivet shaver to smooth them down.  Photo above with my gorgeous purple gloves shows rivets before trimming all of them.  Note the small magnetic level to ensure you are keeping the track placement level.  You can see some of the Butyl tape has softened and eeked slightly below the track.  No worries, as this will be unseen and underneath the top of the guard.  Better to have a great seal.

We let the track sit for two days to allow Parbond to dry out pretty well.  Then time to hang the rock guard.  NOTE:  All arm hardware had been removed before hanging so it was not in the way.  WE ONLY REMOVED THE ACTUAL ARMS, NOT THE RECEIVING HARDWARE since that had been re- riveted on and reinforced during the rehab by our auto body person!

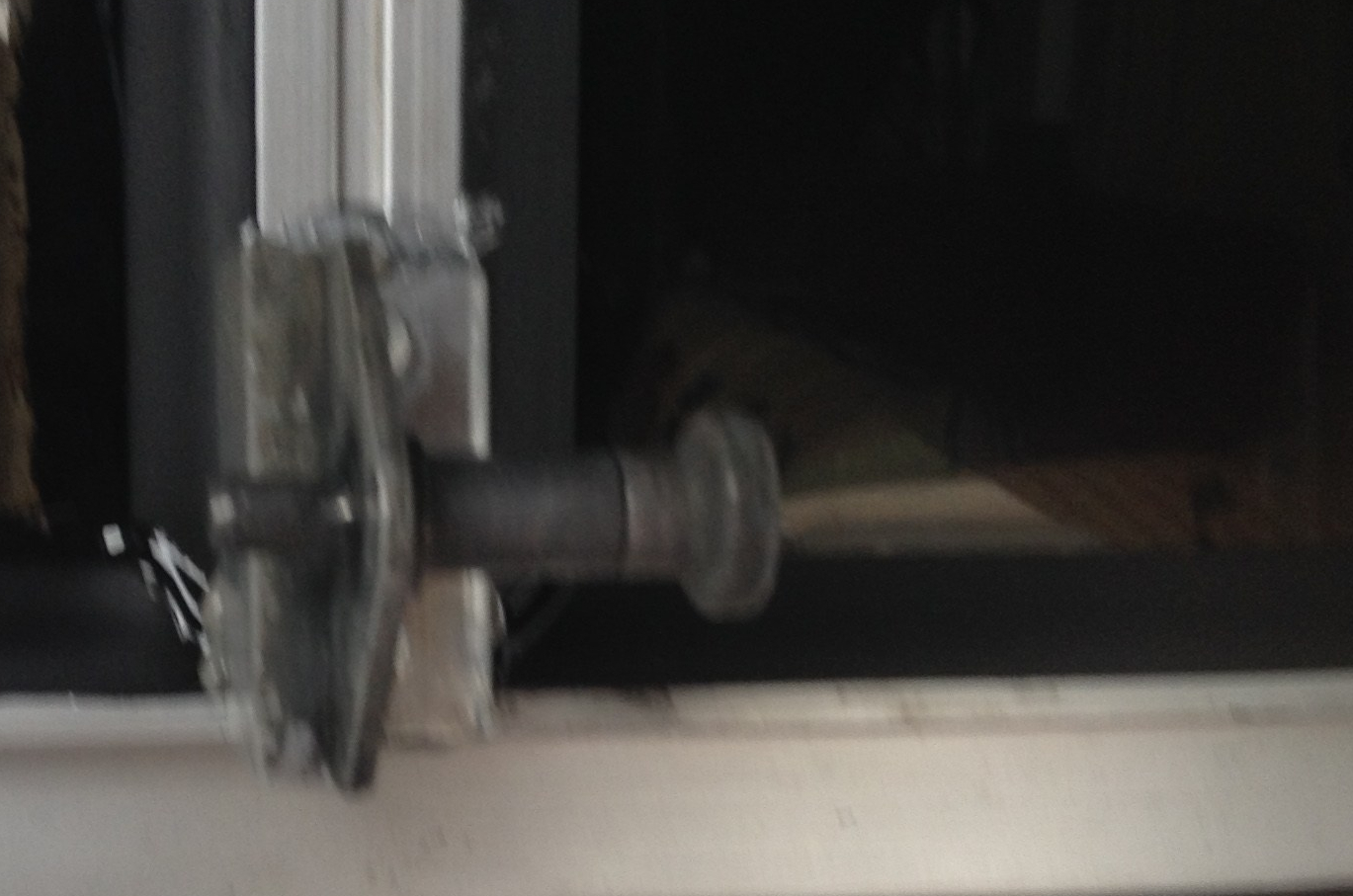

We also found that the hardware locations on the NEW guard were not exact to our original.  So we did have to re position the “plunger” receiver on the bottom of the window on one side (only) about 1/4 ” out so that the receiver slot, see right photo below would meet the plunger pin.  Plunger pin hardware (bottom photo) is the one on streetside, note parbond behind, on top and in screw holes before reinstalling with stainless screws.  To re position the curbside one, Kevin drilled the holes into slot shaped and pushed the bracket to align as needed.  Once parbonded and screwed in place it is secure.

2018-09-27 16.47.22

How to Hang:  Carefully we hung the new rock guard

NOTE:  done as a two person job only please!!!  lift guard parallel to the ground and both people using step ladders, you slide the track on top of guard into receiver hanging track that is installed on trailer, slide guard across length of hanging track.

Hanging Problem!  Once hanging the guard- we noticed that our new guard was not seated very securely in its track.

This was the track salvaged with the guard so we knew it was right (and longer which was good) but for some reason it was way too easy to pop out when lifted up.  To combat this we studied the lifting process closely, watching the relationships between the track on rig and track on guard.  We realized there was too much “play” in the track on rig and that we needed to put something back there so that the bent “J” portion of the track on guard could not rotate back and the guard come unhinged should we hit some pot hole, etc. on the road.

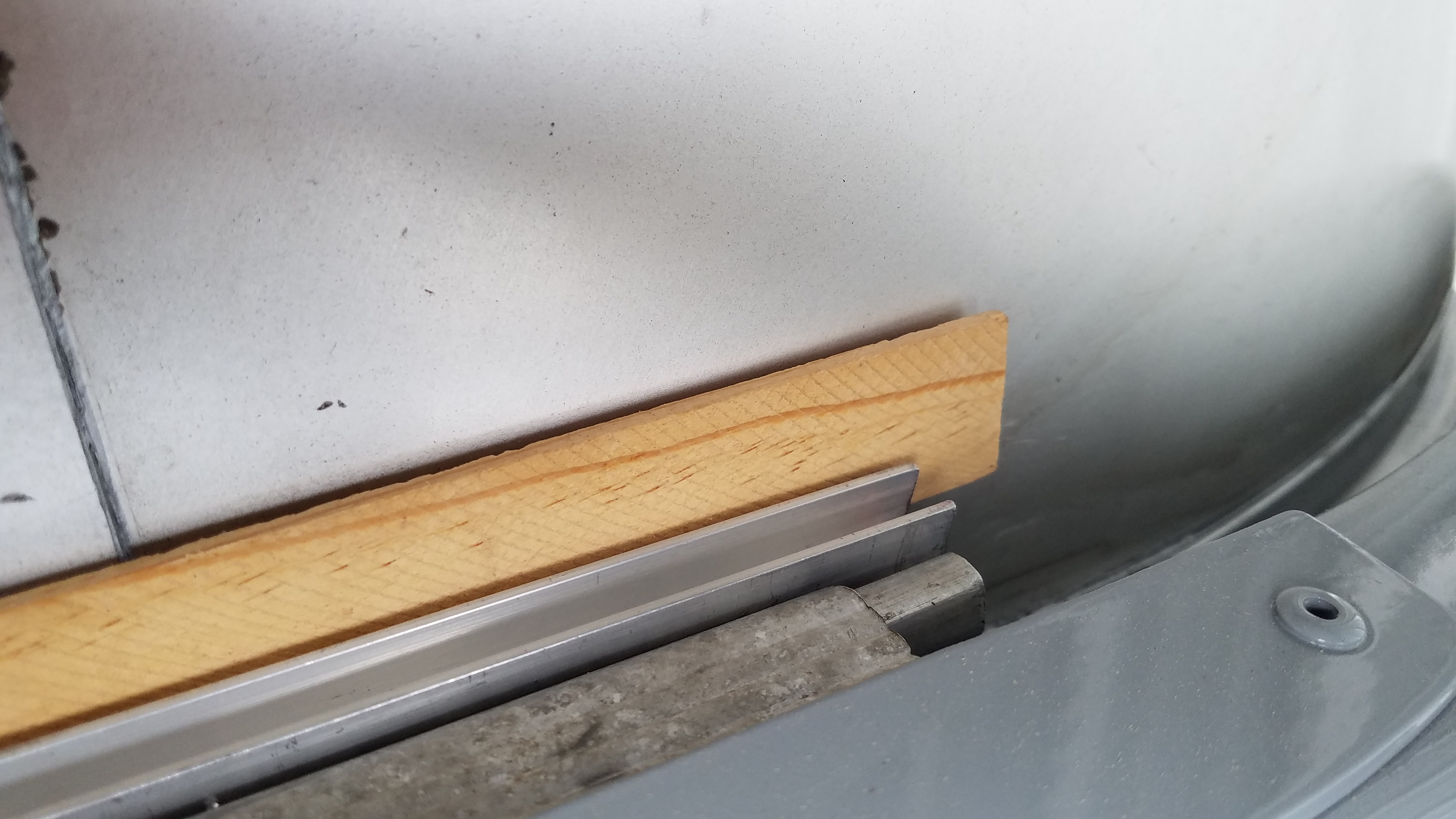

We found some “U” shaped aluminum in the exact length needed at Lowes.  Cheap enough, under $15.  You can see it in photo below just in front of the wood strips we used as shims to force it close to the hanger on the guard.  We then used stainless screws and screwed this track (parbonded over each) 5 places on this track thereby securing it into the hanger track affixed to the trailer.  This process allows the rotation of the guard perfectly but it cannot slip upwards and pop out unexpectedly.

Below you can also see some of the added steel reinforcement strip that we had our auto body fellow fabricate to provide additional rigidity and support to the top of the plastic rock guard itself.  As mentioned previously, these guards are notorious for cracking where the arm hinges are due to years of stress on that particular part when traveling down the road.  These reinforcements are on the outside and inside so the plastic guard is sandwiched between.  They are applied with rivets and were painted at same time as guard so all match, inside and out.

2019-04-27 12.00.11

Here is the results, we are very pleased and safe in the knowledge that the guard is not going anywhere with our filler aluminum track safety addition.  You can see the reinforcement steel strip clearly on the video below too.  Obviously we removed the wood shims after this part of the project was tested and done.



Some still shots of the aluminum U track we added.  The last image shows the track before we installed this added piece.  You can clearly see all the “play” space that was there and needed filling up to prevent the guard’s track from jumping out by accident.

This slideshow requires JavaScript.

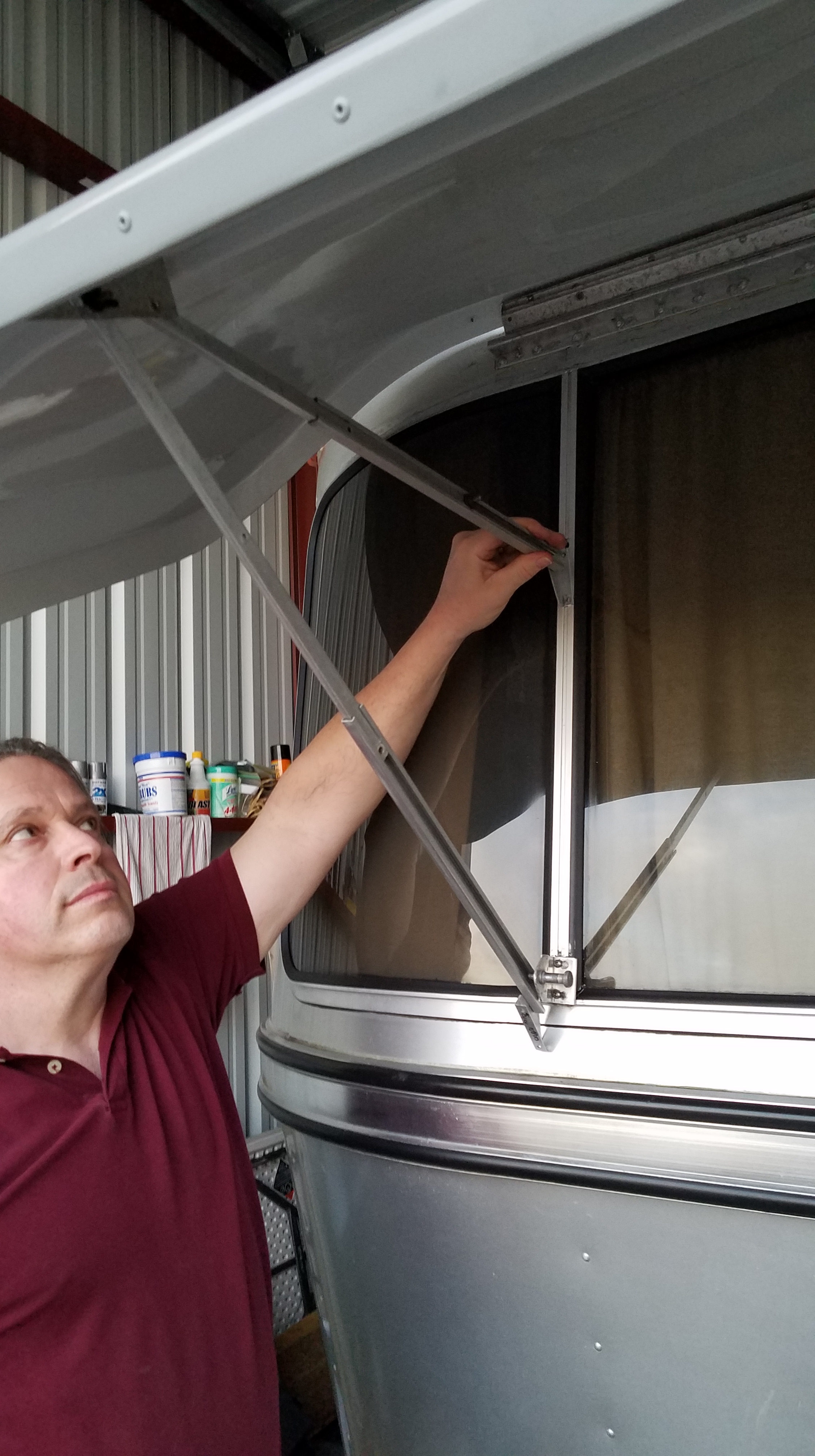

Next came the re-installation of the support arms.  Here Kevin is showing a prelim of how we plan to add additional support arms when set up in camp.  First we needed to order additional arms, and do some changes to hardware.

2019-04-22 19.30.19

We had decided to copy a fellow long time Avioner we met at the Silver Avion Fellowship Rally in IN in 2017 and ordered two additional awning lift arms from Vintage Trailer Supply.  These would be used in conjunction with our originals to create add on support arms when we are camped.  More on that in a minute.

The new sets (sold separately) from Vintage Trailer Supply were a little shorter than our originals but would work.  Kevin drilled out the receiver hardware off the new ones opting to use our original hinge hardware to mount in its original location and holes on our window frames.  He used stainless screws, lock washers and nuts to install the arms to the hardware rather than riveting like was originally done.  Using screws allows for adjustments, replacing or repairs on the fly far easier than riveting.  Below is original mounting bracket that goes on window frame but with the NEW guard arm from VTS installed with stainless screw and lock washer, nut.



20190430_192609

We applied Parbond again behind the hardware before installing back on to the window uprights.  Using the original mounting hardware we could reuse the original holes which is always preferred over making more holes in your Avion.

Once we did this, we reattached to the bracket on inside bottom of guard.  These arm brackets stay attached permanently and are adjusted using wing nuts and washers on stainless screws (1 inch #10) so that the guard can be raised or lowered to just about any height.

The “new” old arms, now with just holes on both ends will be used for additional support for the guard when we are set up in a campsite.  These are screwed on with washers and nuts each time they are applied.  We strongly feel that this additional support (downward) provide superior support for the guard and take away some of the stress on the permanently mounted cantilever ones that hold up and out the guard.  We will simply store them in a little pouch and inside our exterior battery box so they are handy.

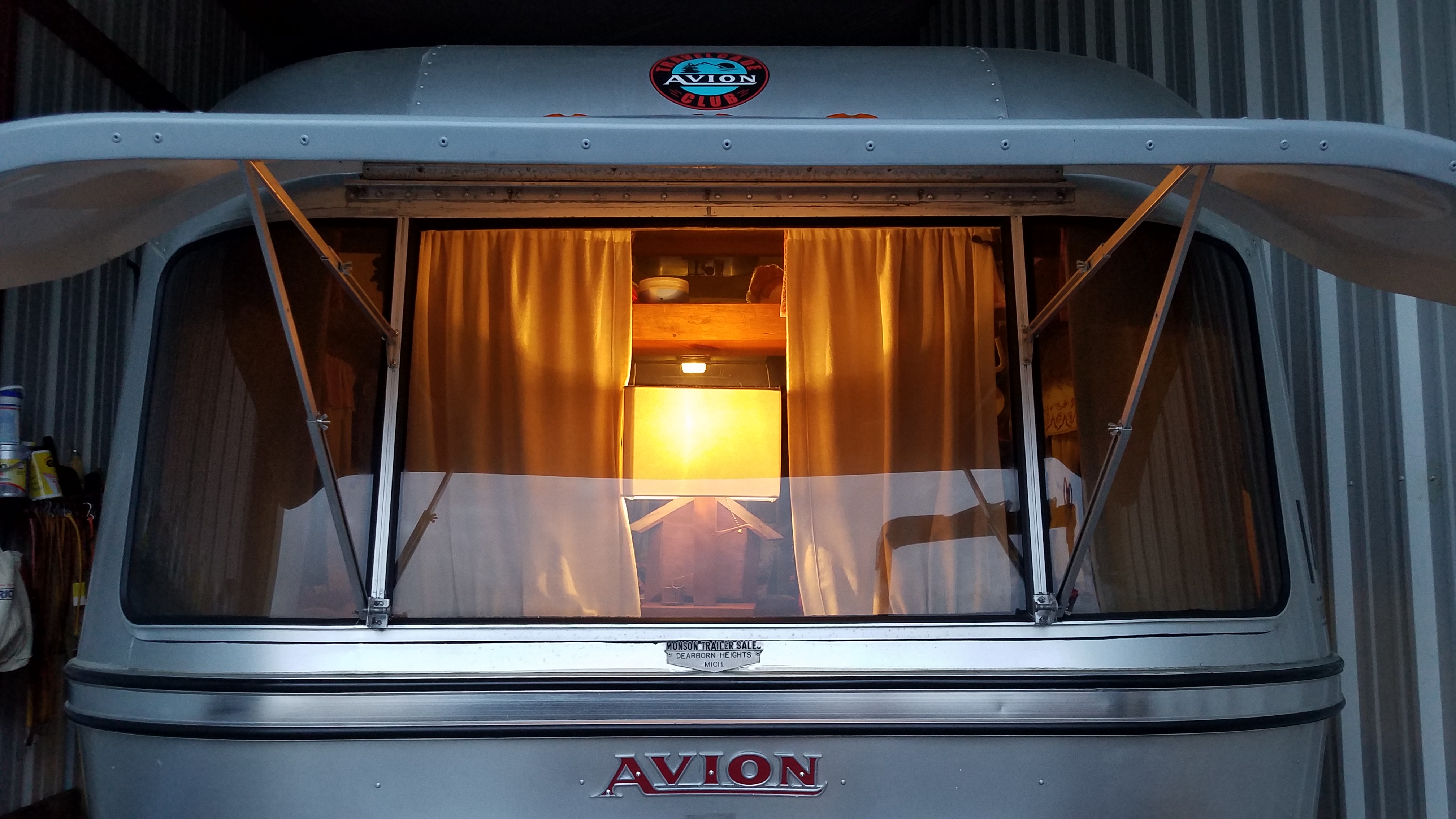

Finishing up the new support arm system and we are all done with this major rehab project.  Notice we have repainted the underside of our rock guard in a lite off white, high gloss.  What this does is it serves to reflect back out the light coming from our lamp (when guard is closed) and also to create a far brighter feeling when guard is open.  Previously, the back of the guard was the medium dark grey of the plastic composite material of the guard.  This darker color absorbed the light rather than reflecting it.  This small change to white has made a huge effect and one we highly encourage. Even just spray painting the underside white with over the counter high gloss paint yourself will help if you do not want to spend the money on the whole auto body finish like we did.



There is nothing more heartwarming and welcoming to us than the Avion Glow!!

2019-05-04 19.53.21

“We travel not to escape life….but for life not to escape us”

Safe journeys!
