Adding Extra Counter Space-Project under $30

Like many RV of ANY age (ours is 46 years old this year-2019!) there never seems to be enough kitchen counter space.  Especially now with the advent of Instapots, Keurig coffee machines, etc. there are times where we just need MORE!

2018-09-08 12.43.11

Here is a 1/2 day project we did to nearly double the size of our counter space in our 1973 Avion, 28 foot LaGrande model.

Supplies:

  • 1 wood topped snack/TV table tray.  Here is the $10 one we used purchased at our Walmart. (we already had a set of these in our sticks n bricks home, so no cost to our project!)
  • Aprox. 3/4″ thick x 2″wide wood strip (for support inside drawer cabinet).  Length should be based on interior cabinet (under countertop) to floor of cabinet.
  • Folding and locking wall mount table hinges.  Here is a selection on Amazon
  • Power drill
  • Pencil and tape measure
  • Carpenters Level
  • Screws (will vary based on thickness of your exterior wall base cabinet)
  • sheet of paper (for making a template)
  • flashlight (to have helper light up inside base cabinet for marking drill holes)
  • extra pair of hands-always helps and is needed!
  • NOTE:  If you prefer to purchase a kit from Camco for a 12″ counter extension here is that product along with an install video which may help you even if you do the do-it-yourself one like we did below.  Camco RV Counter Extension Kit

Step 1:

We took the folding legs and wood hardware bracket off of the snack table.

Step 2:

We made a paper template of the positions for the hinges by placing on tray back, taking measurements of the distance in between the 2 brackets we felt would provide optimal support.

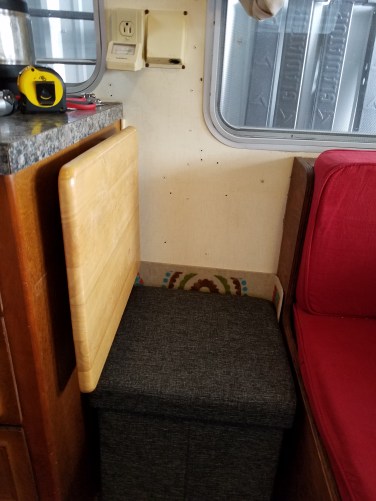

This template will later help us know where on the side of the kitchen base cabinet we need to drill our pilot holes.  You can choose to position your lift up counter extension at same height as your existing kitchen counter or just below.  We recommend to install it just below the bottom edge of our formica countertop.  By doing it that way, our extension, when folded down is flush with the cabinet. See position below.

2018-09-08 12.43.11

Step 3:

Using the hinge template, we made marks on the exterior side of our kitchen base cabinet where we wanted the hinges placed.  Careful to take into account that your hinges are going to be below the finished edge of your extension snack table board.

We measured from just under the formica counter edge down to the position of the top holes for the hinges to ensure this jived with our template.

We used the template to figure out where on the INSIDE of our base cabinet (drawers had been pulled out) that our vertical wood slat needed to be positions to provide additional support to the cabinet once hinges and extension table was in place.

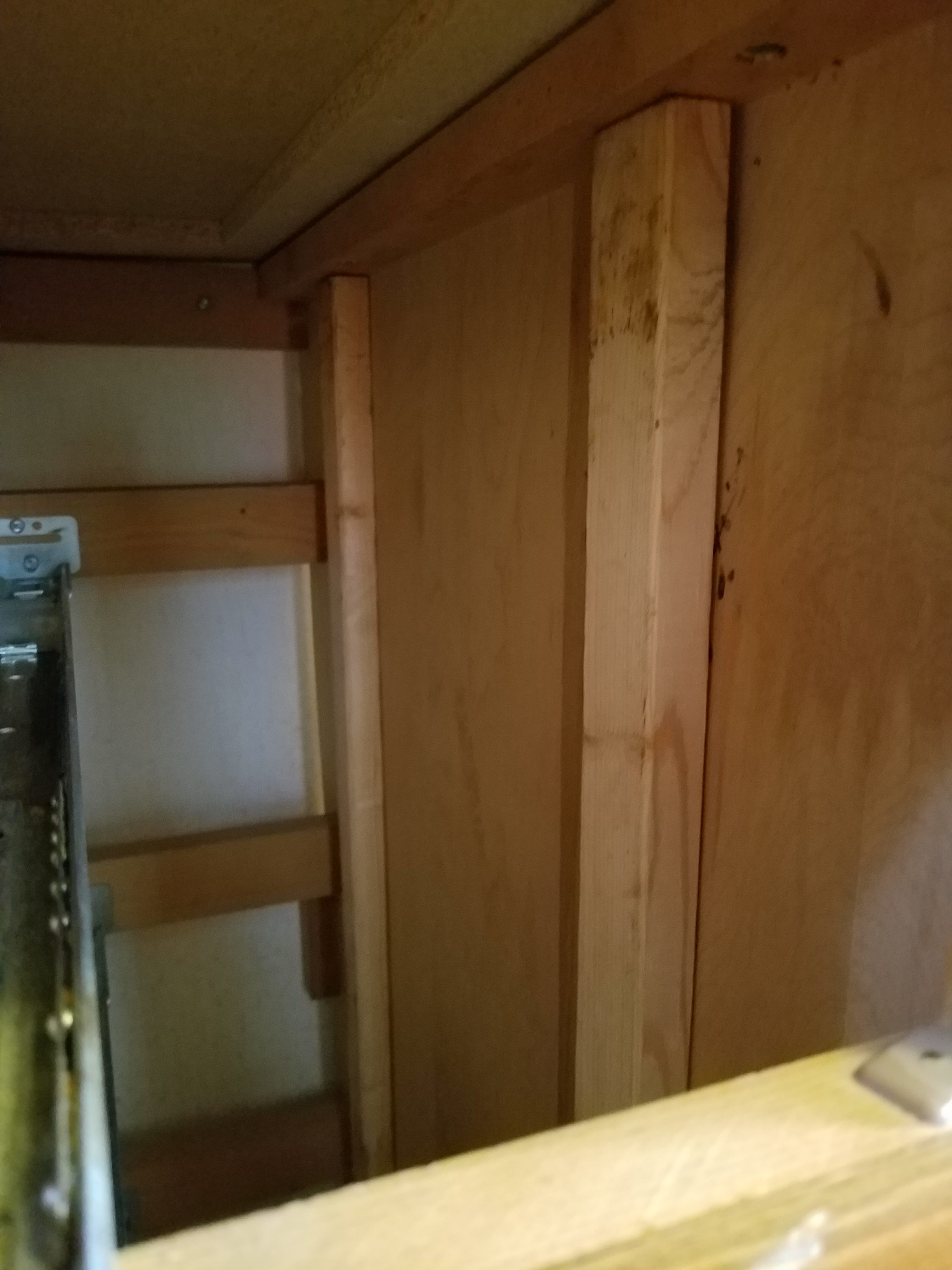

Here is a photo of the wood support slats in place waiting to receive the screwed in hinges from the outside.  Note, we used small screws that did not protrude through the base cabinet but were sufficient to hold the slats in place independently before we proceeded with project from outside of the base cabinet.

2018-09-08 12.22.38

Step 4:

We then double checked and with a pencil marked the holes using our template were we would be screwing in the hinges onto the exterior side of the base cabinet, and screwed in the hinges.  Be sure to ensure they are level.  Install 1, then use this to hold your level in place while you position the second one the same distance apart as your wood slats are on the inside that are being used as support to receive the long screws that go from the hinge exterior, through your base cabinet wall and sink into the wood support slate on inside of cabinet.



Step 5:

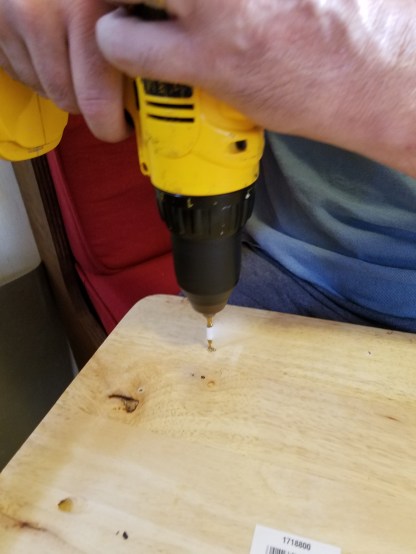

Next we used the template again to drill pilot holes into the underside of table tray top.  Ours was oak and very hard so pilot holes are a must.  It should be noted that wood top snack trays come in many colors, honey oak, walnut, etc. and you may wish to select a tray top that compliments your base cabinets.  We used a snack tray we already had on hand to save money-hence the “butcher block” look rather than matching our base cabinet stain.

2018-09-08 12.34.28

Step 6:

Perhaps the hardest part of the whole project was laying the tray table down on fully deployed and locked in place hinges and from the bottom, screwing the table top to the hinges.  This really does require a helper to ensure the top stays in place and is level.

All Done!



Safe travels….one life…Live it riveted!

K-L and Avion-bitmoji-withCopyright2bHr

Kevin & Luisa Sherman–ThePewterPalace.com
